Description

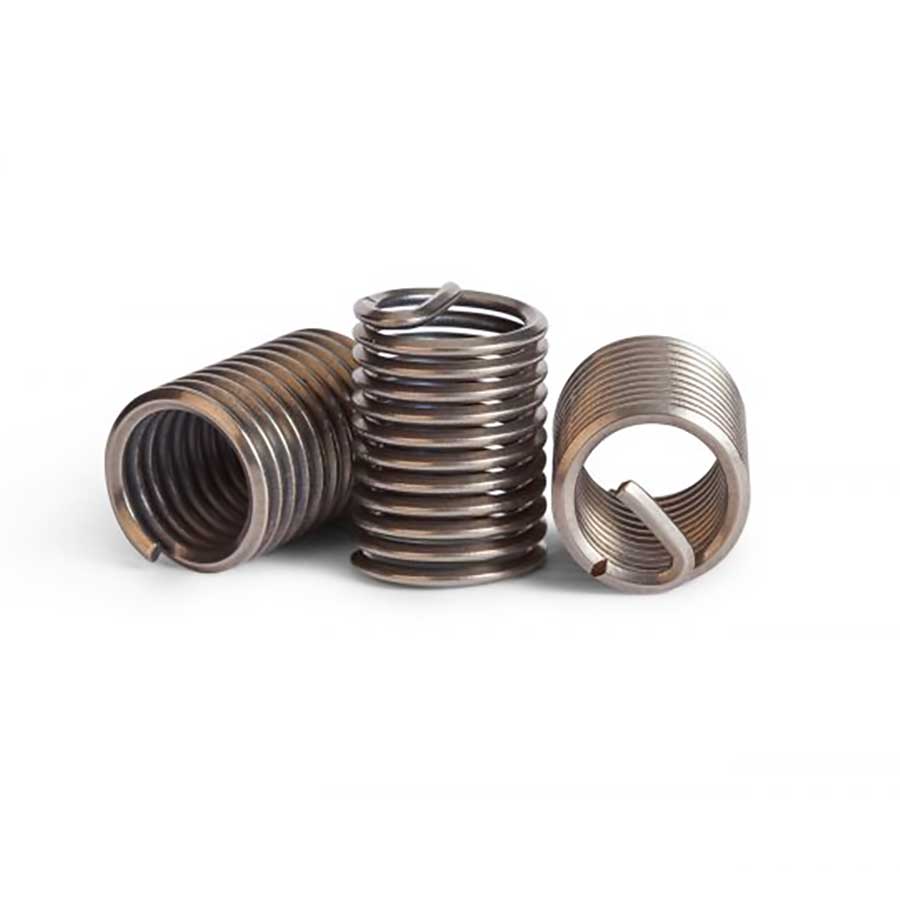

US Wire Inserts. Helically Wound inserts are made from high quality stainless steel wire, with a diamond shaped cross section, wound to the shape of a spring thread. The insert, which is larger in diameter than the tapped hole, is compressed during installation then allowed to spring back, permanently anchoring the insert in the tapped hole. Because of it’s larger diameter, the insert has a greater contact area and is normally stronger than the original threads.Corrosion resistant stainless steel. Interchangeable with other brands.
| hide_responcive | SKU | SIze | Length | Qty. |
|---|---|---|---|---|
| W206836 | 7/16-20 | 0.657 | 10 | |
| W206837 | 1/2-20 | 0.750 | 10 | |
| W206835 | 3/8-24 | 0.563 | 10 | |
| W206834 | 5/16-24 | 0.468 | 10 | |
| W206832 | 3/4-10 | 1.125 | 5 | |
| W206833 | 1/4-28 | 0.375 | 10 | |
| W206830 | 1/2-13 | 0.750 | 10 | |
| W206831 | 5/8-11 | 0.938 | 5 | |
| W206829 | 7/16-14 | 0.657 | 10 | |
| W206828 | 3/8-16 | 0.563 | 10 | |
| W206827 | 5/16-18 | 0.468 | 10 | |
| W206826 | 1/4-20 | 0.375 | 10 |
Filter: Reset
